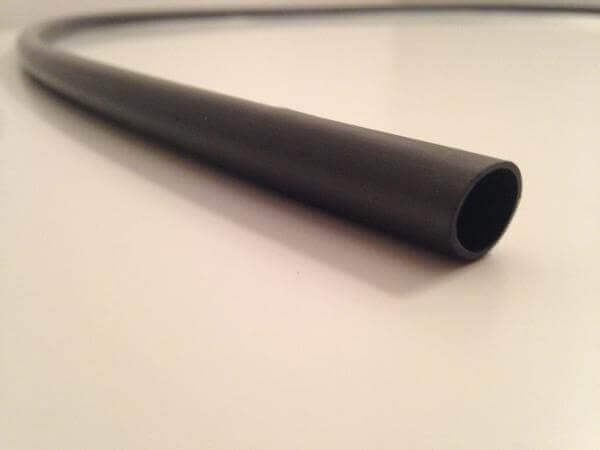

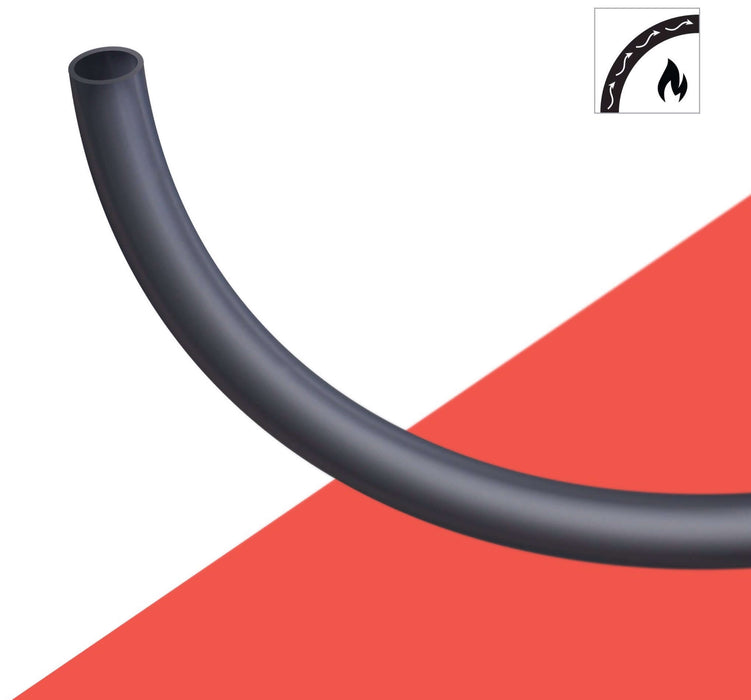

H2 PFA Thermally Conductive / Anti-Stat Tubing
$6.39
A proprietary material, H2 PFA tubing from Fluorotherm has almost 3x higher heat conductivity than standard PFA. It can be used in a variety of applications for dust and particulate control, electrical discharge, and where thermal dissipation is required.
- Proprietary fluoropolymer based on PFA resin
- 3X higher thermal conductivity than standard PFA
- Extremely smooth tubing surface
- Excellent anti-static properties
- Dark gray in color
Additional material information (click to download):
- H2 tubing material overview
- Click to download H2 PFA technical information
- Recently highlighted as optimal for gas sampling applications
Standard sizing data. See more at Fluorotherm.
| ID | Wall | OD | Burst (75 F) |
| 0.031" | 0.016" | 0.063" | 2420 PSI |
| 0.063 | 0.031 | 0.125 | 2400 |
| 0.063 | 0.062 | 0.188 | 3200 |
| 0.125 | 0.031 | 0.188 | 1548 |
| 0.125 | 0.062 | 0.25 | 2400 |
| 0.156 | 0.047 | 0.25 | 1753 |
| 0.188 | 0.031 | 0.25 | 1120 |
| 0.25 | 0.031 | 0.313 | 878 |
| 0.25 | 0.062 | 0.375 | 1538 |
| 0.312 | 0.031 | 0.375 | 721 |
| 0.375 | 0.031 | 0.438 | 612 |
| 0.375 | 0.062 | 0.5 | 1120 |
| 0.438 | 0.031 | 0.5 | 531 |
| 0.5 | 0.031 | 0.563 | 469 |
| 0.5 | 0.062 | 0.625 | 878 |
| 0.562 | 0.031 | 0.625 | 420 |
| 0.625 | 0.031 | 0.688 | 380 |
| 0.625 | 0.062 | 0.75 | 721 |
| 0.688 | 0.031 | 0.75 | 347 |
| 0.75 | 0.04 | 0.83 | 404 |
| 0.875 | 0.045 | 0.965 | 390 |
| 0.875 | 0.062 | 1 | 531 |
| 1 | 0.045 | 1.09 | 344 |
| 1.25 | 0.045 | 1.34 | 278 |
| 1.5 | 0.05 | 1.6 | 258 |
