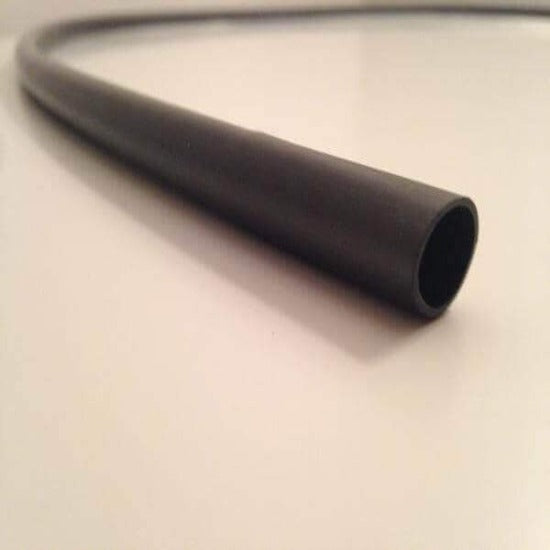

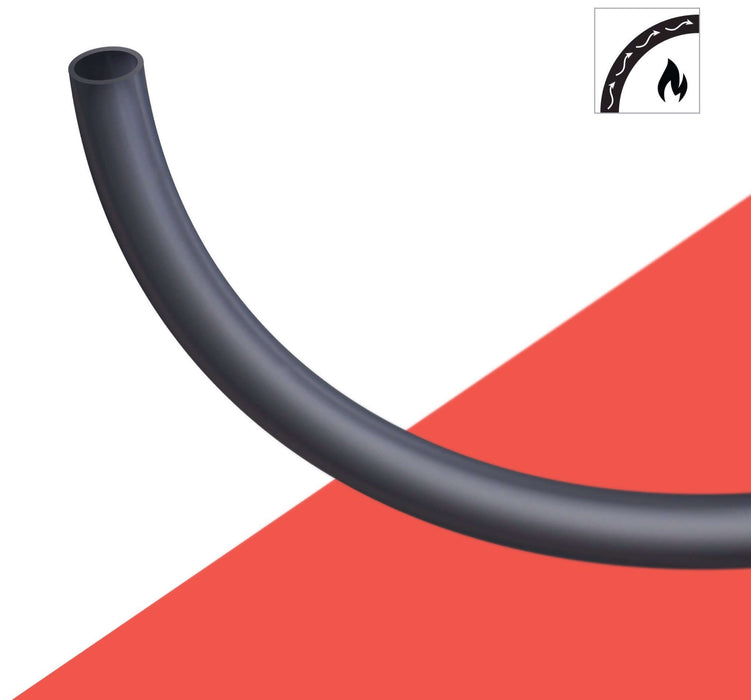

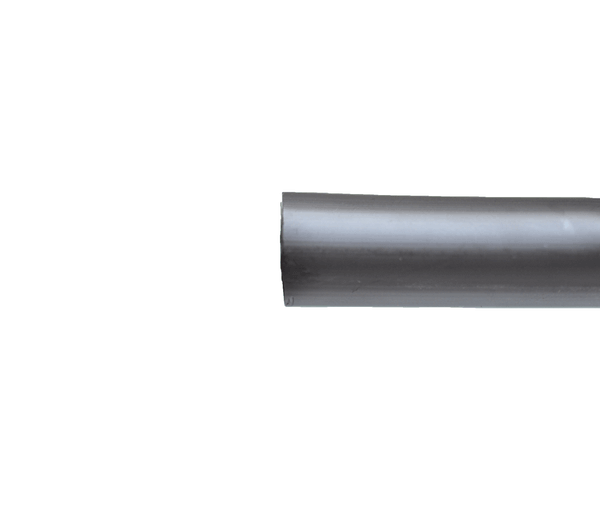

H2 FEP Thermally Conductive / Anti-Stat Tubing
$1.56
A proprietary material, H2 FEP tubing from Fluorotherm has almost 3x higher heat conductivity than standard FEP. It can be used in a variety of applications for dust and particulate control, electrical discharge, and where thermal dissipation is required.
- Proprietary fluoropolymer based on FEP resin
- 3X higher thermal conductivity than standard FEP
- Extremely smooth tubing surface
- Excellent anti-static properties
- Dark gray in color
Additional material information (click to download):
Standard sizing data. See more at Fluorotherm.
| ID | Wall | OD | Burst (75 F) |
| 0.031" | 0.016" | 0.063" | 1815 PSI |
| 0.063 | 0.031 | 0.125 | 1800 |
| 0.063 | 0.062 | 0.188 | 2400 |
| 0.125 | 0.031 | 0.188 | 1161 |
| 0.125 | 0.062 | 0.25 | 1800 |
| 0.156 | 0.047 | 0.25 | 1315 |
| 0.188 | 0.031 | 0.25 | 840 |
| 0.25 | 0.031 | 0.313 | 659 |
| 0.25 | 0.062 | 0.375 | 1154 |
| 0.312 | 0.031 | 0.375 | 541 |
| 0.375 | 0.031 | 0.438 | 459 |
| 0.375 | 0.062 | 0.5 | 840 |
| 0.438 | 0.031 | 0.5 | 398 |
| 0.5 | 0.031 | 0.563 | 352 |
| 0.5 | 0.062 | 0.625 | 659 |
| 0.562 | 0.031 | 0.625 | 315 |
| 0.625 | 0.031 | 0.688 | 285 |
| 0.625 | 0.062 | 0.75 | 541 |
| 0.688 | 0.031 | 0.75 | 260 |
| 0.75 | 0.04 | 0.83 | 303 |
| 0.875 | 0.045 | 0.965 | 293 |
| 0.875 | 0.062 | 1 | 398 |
| 1 | 0.045 | 1.09 | 258 |
| 1.25 | 0.045 | 1.34 | 208 |
| 1.5 | 0.05 | 1.6 | 193 |
